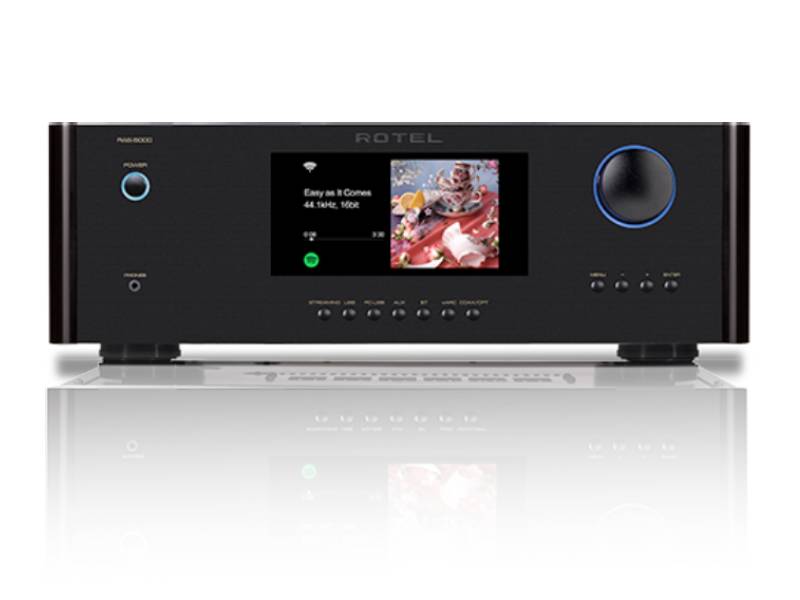

Rotel Integrated Streaming Amplifier in Black - RAS5000B
RAS5000B
$3999 / Each
Scheduled Delivery
Rotel Integrated Streaming Amplifier in Black - RAS5000B
RAS5000B
$3999 / Each
Rotel Integrated Streaming Amplifier in Silver - RAS5000S
RAS5000S
$3999 / Each
- CATEGORY: Home Theatre Receivers & Amps
Simplicity and performance meet in the Rotel RAS-5000, a component designed to fit into your lifestyle and elevate your entertainment experience.
Engineered with care
- DIMENSIONS (W × H × D): 431 x 144 x 425 mm ,17” x 5 7/8” x 16”
- FRONT PANEL HEIGHT: 132.6 mm / 5 1/4”
- POWER REQUIREMENTS: 120V, 60Hz
- POWER CONSUMPTION: 380W
- STANDBY POWER CONSUMPTION: <0.5W
- NET WEIGHT:15.7 kg, 34.6 lbs
- BTU RATING (4Ω, 1/8th power): 1027 BTU/h
POWER OUTPUT
- 220 Watts / ch (4 Ohms)
- 140 Watts / ch (8 Ohms)
TOTAL HARMONIC DISTORTION(THD)
- <0.03%
FREQUENCY RESPONSE
- Line Level Inputs:10Hz - 100kHz, ±0.5dB
- Digital Inputs:10 Hz – 70k Hz, (±3 dB, MAX)
S/N RATIO (IHF "A" Weighted)
- Line Level Inputs: 103dB
- Digital Inputs: 105dB
Product Description
Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.
The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
| Specifications | |
|---|---|
| PC-USB | USB Audio Class 2.0 (up to 24-bit/384kHz)* *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz) Roon Ready |
| INPUT IMPEDANCE | |
| Digital Inputs: | 75 Ohms |
| Line Level Inputs: | 46k Ohms |
| INPUT SENSITIVITY | |
| Digital Inputs: | -8dBfs |
| Line Level Inputs: | 0.78V |
| Specifications | |
| COAX/OPTICAL DIGITAL INPUT SIGNALS | SPDIF LPCM (Up to 24-bit/192kHz) |
| HDMI | Support eARC function |
| TONE CONTROLS | ±10dB at 100Hz / 10kHz |
| INPUT OVERLOAD | |
| Line Level Inputs: | 4.1V |
| Specifications | |
| DAMPING FACTOR | 290 |
| INTERMODULATION DISTORTION | (60 Hz : 7k Hz, 4:1) <0.03% |
