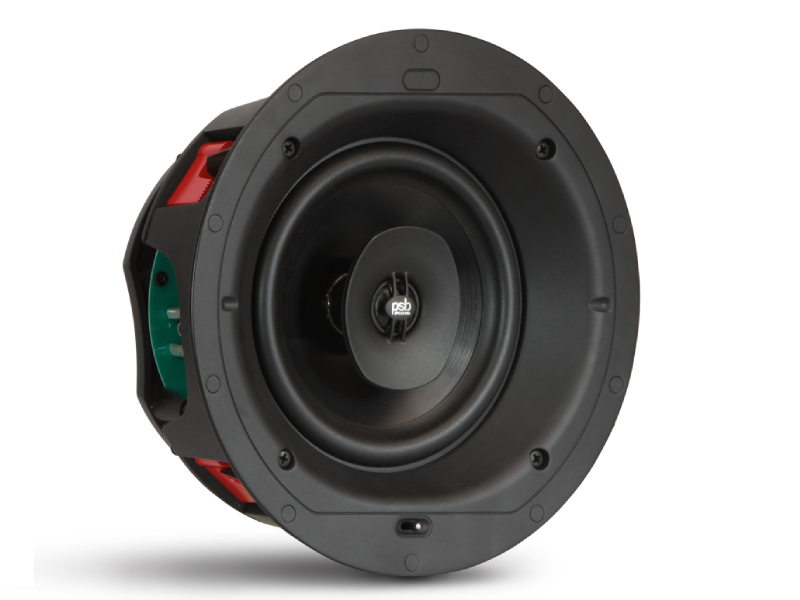

PSB Speakers 2-way In-Ceiling Speaker - CS610

SKU : CS610

$449.00
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

Select Performance In-Ceiling Speaker

This premium architectural speaker embodies over 40 years of cutting-edge research in the field of acoustics and loudspeaker design. Musical, refined, and nearly invisible, these speakers can create a beautiful ambience, even in larger spaces. Because their sonic signature is identical to other PSB speakers, these CS610’s can integrate perfectly as part of home theatres or as the soundtrack of the connected home.

There are three models in this series, and all feature frameless magnetic grilles with invisible scrims. Both round and square grilles are provided, simplifying and reducing your inventory requirements. Each model features an improved simple, foolproof mounting system using heavy duty doglegs. Cutting templates are included. Pre-construction brackets and backcans are also available.

CS610 2-way In-Ceiling Speaker

Featuring PSB’s trademark carbon-filled polypropylene 6 1/2” woofer, this speaker has a warm and balanced sound with plenty of power handling thanks to the high temperature voice coil. The 3/4” aluminium dome tweeter, another proprietary PSB driver, is concentrically mounted and features a carefully engineered Wave Guide and ball-joint pivot mount assembly. This allows the tweeter to go lower in frequency, creating a perfect blend with the woofer in the crossover region, and allows the tweeter to be aimed toward the listening position for enhanced musical imaging. Adjustment for the level of the tweeter allows you to ‘dial in’ the upper frequency response of the speaker and its acoustic environment after installation to achieve the most musical balance for every room.

Dimensions / Weights / Finish
FinishWhite
Weight4.4lb (2kg)/each
Size (W x H x D)8 3/8” * Diameter (212mm) Diameter
Acoustic Design
Design TypeOpen Back
Internal VolumeN/A
Crossover2100Hz, LR4
Woofer (Nominal)6 1/2” (165mm) Fiber filled Injection Molded Polypropylene Cone / Rubber Surround
Midrange (Nominal)-
Tweeter (Nominal)3/4” (19mm) Aluminum Dome Black Anodized
Input Power
Program-
Recommended10 – 100 Watts
Impedance
Minimum4 Ohms
Nominal6 Ohms
Sensitivity
Listening Room87dB
Anechoic Chamber85dB
FREQUENCY RESPONSE
LF Cutoff -10dB-
Off Axis @ 30°±1 1/2dB-
On Axis @ 0°±3dB50-20,000Hz
On Axis @ 0°±1 1/2dB-
