Roksan Audio Caspian M2 Power Amp (Each)
Caspian M2 Power Amp
$3499
- CATEGORY: Home Theatre Receivers & Amps
Adding the renowned Caspian Power Amplifier to an existing M2 system results in a musical experience that fights significantly, with a performance rarely found at its price point.
| Specifications | |
|---|---|

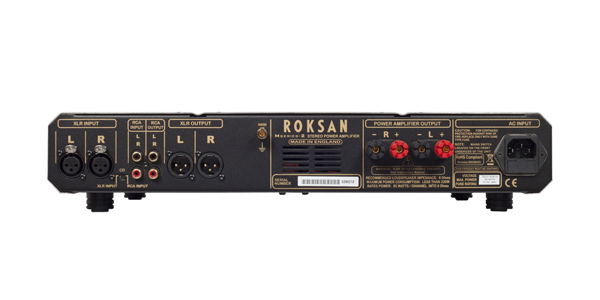

| Inputs | Input 1 (Balanced): 1x pair XLR sockets, Input 2 (Single ended): 1x pair RCA sockets |
| Input Impedance | 38 kΩ |
| Input Sensitivity | 240mV RMS |
| Signal Input | L+R channels. Balanced and single ended |
| Signal Output | Chain output L+R channels. Balanced and single ended |
| Outputs | Output 1: 1x pair RCA sockets, Output2: 1x pair XLR 3 pin plugs |
| Output Voltage | 700mV |
| Power Output | 1x pair loudspeakers 4mm socket L+R |
| Output Power | 85 Watts, into 8Ω both channels driven 125 Watts, into 4Ω both channels driven |
| Power Supply | 350VA Ultra Low Noise Toroidal Transformer |
| Current Output | 60 Amps Peak to Peak |
| Damping Factor | 160 Amps measured at 8Ω |
| Frequency response | -3dB, <3Hz. > 1000kHz |
| Gain | 31.6dB straight or untrimmed, 0.316 untrimmed to fully trimmed |
| Harmonic Distortion | 0.005% 1kHz, into 8Ω |
| Signal to Noise Ratio | Line 108dBa (ref. 900mV) |
| Power Source | 100V/120V, 50Hz/60Hz, 220V/240V, 50Hz/60Hz |
| Power Consumption | Full power 2 channels 8Ω, < 330 W 4Ω <550W |
| Dimension | 432 x 330 x 70 (WxDxH) mm, 432 x 330 x 80 (including feet) |
| Weight | 13 Kg |
