Roksan Audio Caspian m2 integrated amp (Each)

Roksan Audio Caspian m2 integrated amp (Each)

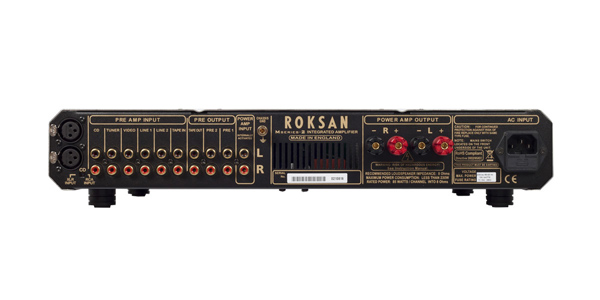

Caspian m2 integrated amp

$3999

CALL FOR FREE CONTACTLESS DELIVERY/PICKUP*

Call for Preferred Pricing
Sales: (416) 282-8111

Like its CD Player brother, the Caspian Integrated has received numerous awards and five star reviews from around the globe for its sophisticated, yet powerful and grippy performance.

FEATURES

  • New, modern, timeless aesthetics
  • New stainless steel cover
  • High quality Mains inlet filter
  • Full functional Roksan LCD system remote control (RMX-108)
  • 85 Watts/Channel into 8Ω,125 W/Ch into 4Ω
  • New on board output protection circuit with high current relays
  • Five line inputs plus tape input and output
  • First input switchable to balanced XLR
  • Independent Preamplifier stage Power Supply
  • Thermally controlled fan assisted heat-sink cooling
  • Upgarded components and circuitry
  • Motorised volume control with LED position indicator
  • -20dB mute function
  • 2 pre-amplifier outputs
  • Power amplifier input (requires internal work for activation)
  • 350VA ultra low noise, low leakage Toroidal transformer
  • 60VA ultra low noise, low leakage Toroidal transformer for Preamplifier Power

Supply

  • Short circuit protection
  • Power supply failure detection
  • Pre power-up diagnostic check
  • Gold plated input RCA & XLR connectors and speaker binding posts
Specifications
Inputs 5 Line & Tape RCA Gold plated, CD Input also switchable to XLR Balanced Gold plated
Input Impedance 47 kΩ
Input Sensitivity (85W) Line 240mV
Outputs Gold plated RCA Tape & 2 Preamplifier
Output Voltage 240mV (Tape Out), 700mV (Pre Out)
Power Outputs Loudspeaker, L & R
Output Power >85 Watts, into 8Ω both channels driven, >125 Watts, into 4Ω both channels driven
Power Supply 350VA Ultra Low Noise Toroidal Transformer, 60VA Ultra Low Noise Transformer Preamp Section Toroidal, 5 Regulated Supply Rails
Current Output 60 Amps Peak to Peak
Damping Factor >160 (8Ω)
Frequency response -3dB, <1Hz – 90kHz
Gain 40.2dB Overall (Pre & Power), 9.5dB Preamplifier, 30.7dB Power Amplifier
Power Source 100V – 120V 50Hz / 60Hz, 220V – 240V 50Hz / 60Hz, (via Mains inlet filter)
Signal to Noise Ratio Line 108dBa (ref. 500mV), 85dBa (ref. 1W, 8Ω)
Harmonic Distortion 0.002% 1kHz, 0.015% 20kHz 10W – 8Ω, 0.0025% 1kHz, 0.03% 20kHz 50W – 8Ω
Power Consumption < 230 W
Dimension 432 x 330 x 70 (WxDxH) mm, 432 x 330 x 80 (including feet)
Weight 13 Kg
