Roksan Audio Caspian Integrated Amplifier - Caspian Integrated Amplifier (S)
CASINTAMPSIL
$4599
Roksan Audio Caspian Integrated Amplifier - Caspian Integrated Amplifier (B)
CASINTAMPBLK
$4899 / Each
Roksan Audio Caspian Integrated Amplifier - Caspian Integrated Amplifier (S)
CASINTAMPSIL
$4599
- CATEGORY: Home Theatre Receivers & Amps

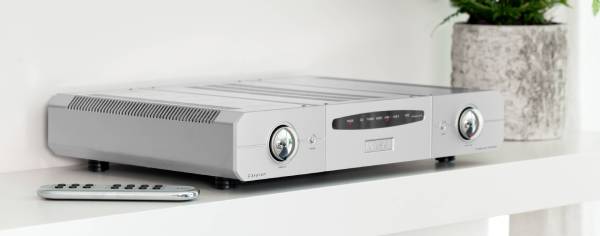

The Caspian Integrated Amplifier with separate power supplies for pre and power amp sections and host of inputs and outputs.
It is an award-winning audio classic that appeals to a wide range of customers looking for a real taste of high-end sound.
The Caspian Integrated Amplifier, like other products in the range, has received awards and accolades from around the world for its smooth, grippy and powerful sound. A true high-end amplifier without the price tag, it is used as reference in multiple situations.
Using independent power supplies for each channel and a fully symmetrical circuit design, it offers excellent value for its performance level. It can be used with the Caspian Power Amplifier as part of a superior multi-amplification system.
Key Features
- On-board output protection circuit with high current relays
- Five-line inputs plus tape input and output
- First input switchable to balanced XLR
- Independent Preamplifier stage Power Supply
- Thermally controlled fan assisted heat-sink cooling
- High-end components and circuitry
- Motorised volume control with LED position indicator
- -20 dB mute function
- 2 pre-amplifier outputs
- Short circuit protection
- Power supply failure detection
- Pre-power-up diagnostic check
| Specifications | |
|---|---|
| Amplifier Type | Class-AB |
| Inputs | 5 x RCA (CD Input Switchable to gold-plated XLR) |
| Input Impedance | 47 ohms |
| Outputs | Speaker (L & R), Gold-plated RCA Preamplifier, Gold-plated RCA tape |
| Power Output (Per Channel) | > 85 W (8 ohms) / > 125 W (4 ohms) |
| Power Supply | 350 VA Power Amplifier 60 VA Ultra low noise Toroidal transformer Pre-amplifier section toroidal |
| Signal to Noise Ratio | Line 108 dB |
| Dimensions (W x H x D) | 432 x 80 x 330 mm (incl. feet) |
| Frequency Response | -3 dB, <1 Hz – 90 kHz |
| Gain | 40 dB overall |
| Harmonic Distortion | 0.002 % 1 kHz, 0.015 % 20 kHz 10 W - 8 ohms 0.0025 % 1 kHz, 0.03 % 20 kHz 50 W - 8 ohms |
| Power Consumption | 2-CH: 8 ohms = <330 W, 4 ohms = <550 W |
| Weight | 14 kg |
