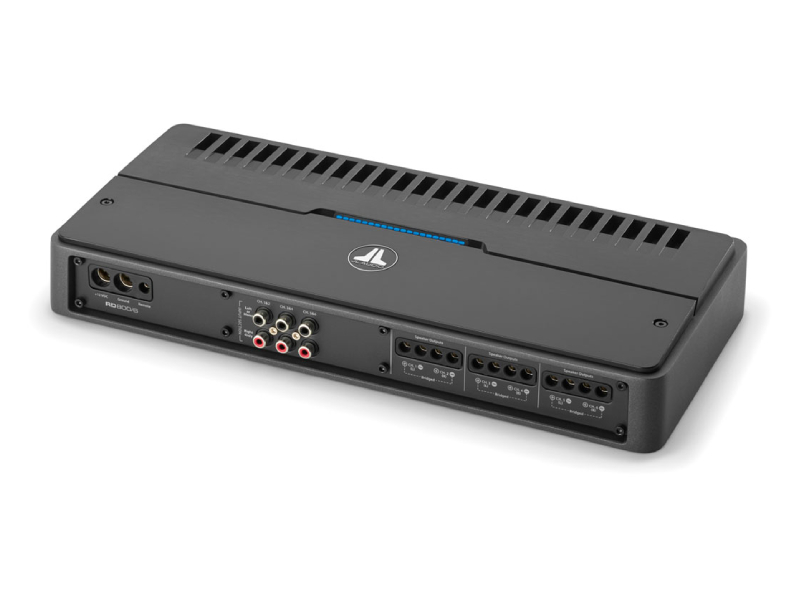

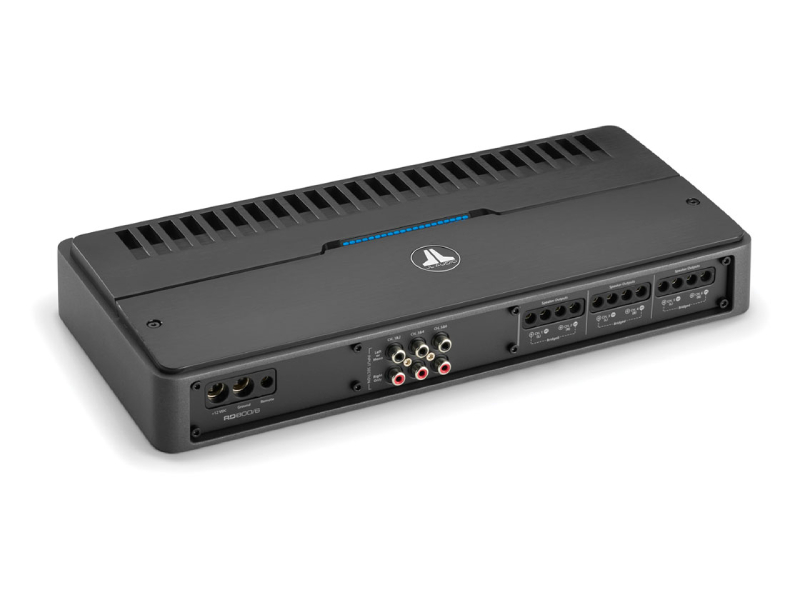

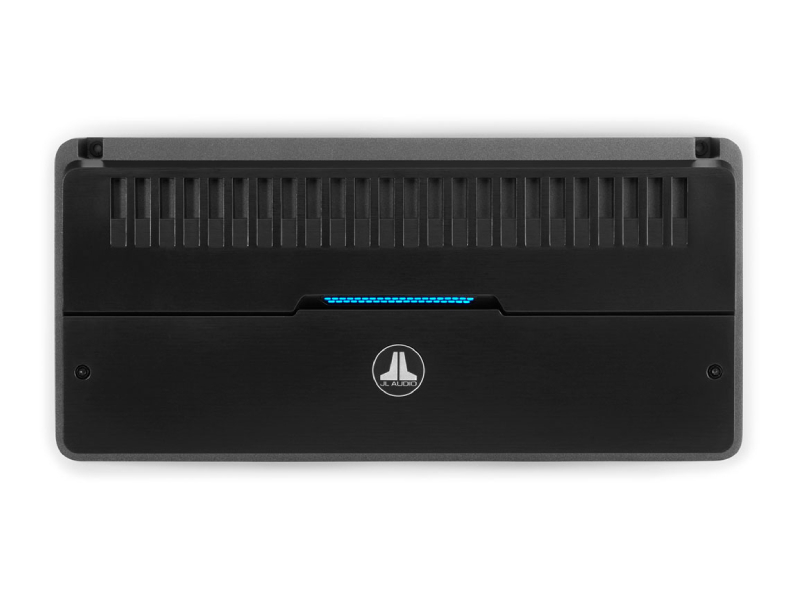

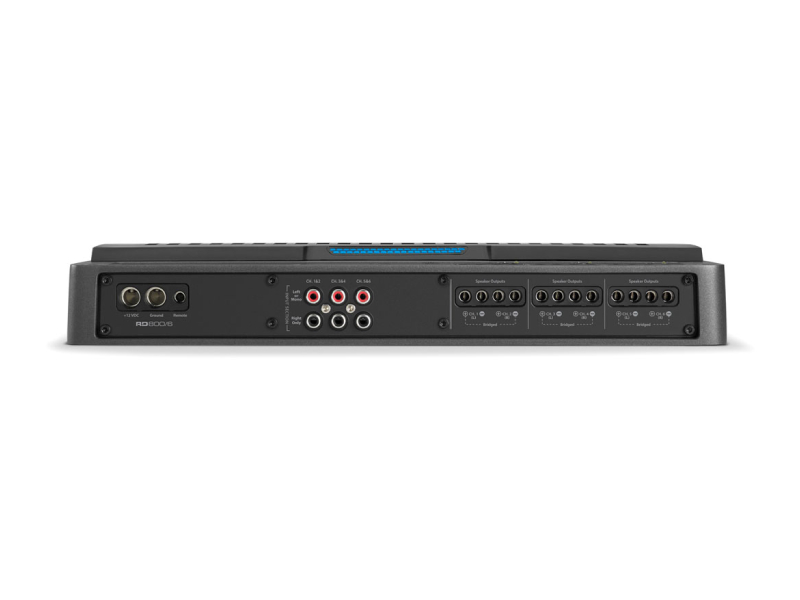

JL Audio RD Car 6 Channel 800 W Full-range Amplifier - RD800/6
SLEEK, POWERFUL, PACKED WITH VALUE
The look is amazing, and the performance backs it up. These ultracompact full-range RD series amplifiers from JL Audio are engineered to generate loads of power with exceptional efficiency and low distortion. The result: premium audio quality with significantly reduced current draw and heat.
WHAT YOU'LL LOVE
EFFICIENT CLASS-D DESIGN
Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.
CLEAN, POWERFUL, RELIABLE

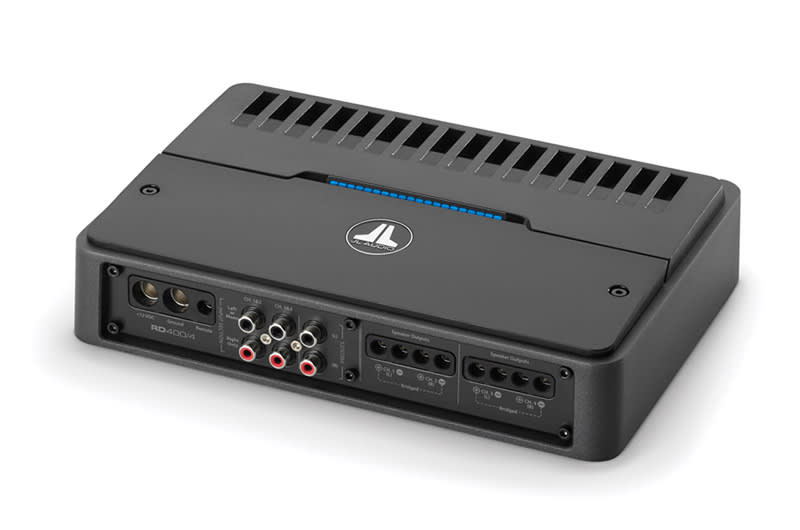

The 4-channel amp churns out 400 watts of total power — 100 watts from each channel into a 2-ohm load (14.4 volts, 1% THD). The 6-channel amp outputs 800 watts of total power with an additional pair of channels capable of 200 watts each into a 2-ohm load (14.4 volts, 1% THD). All RD channel pairs are bridgeable for maximum application flexibility.
STUDIO-GRADE SIGNAL PROCESSING

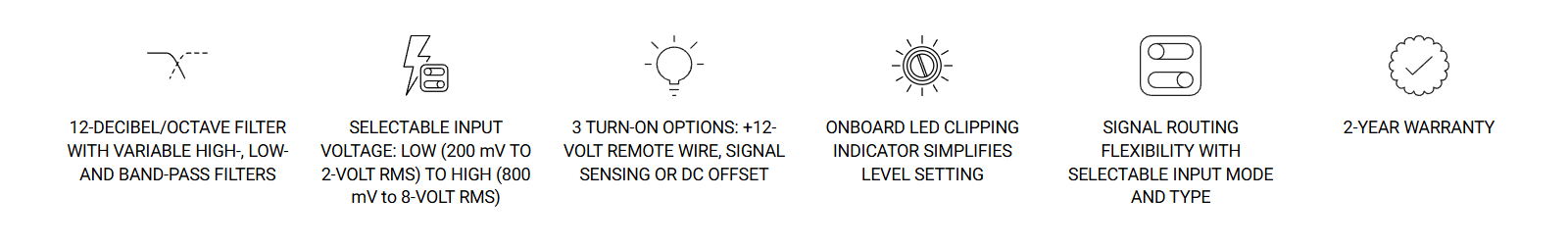

This RD series amplifier’s signal processing features include high- or low-pass 12-decibel/octave filters for each channel pair, with continuously variable frequency selection from 50–500 Hz. The 6-channel model offers triple high-pass filters or full 3-way crossover capability.
LED CLIPPING INDICATORS

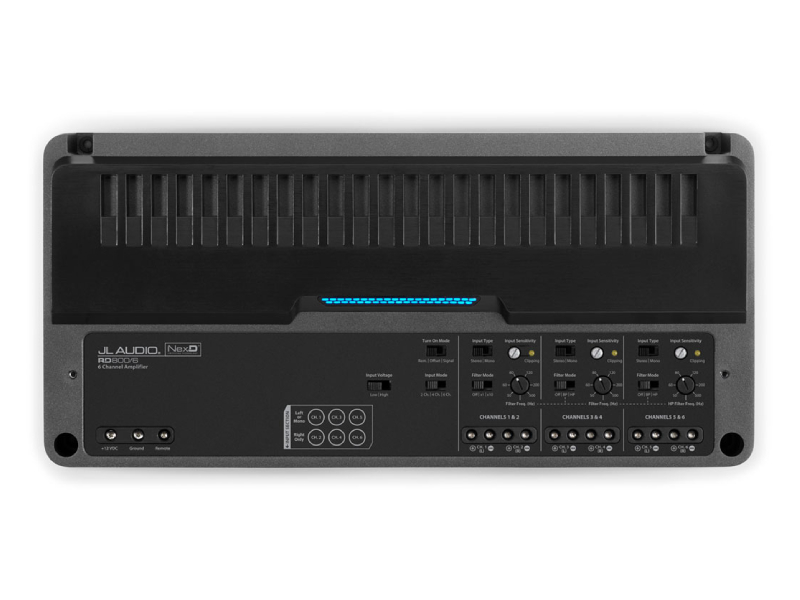

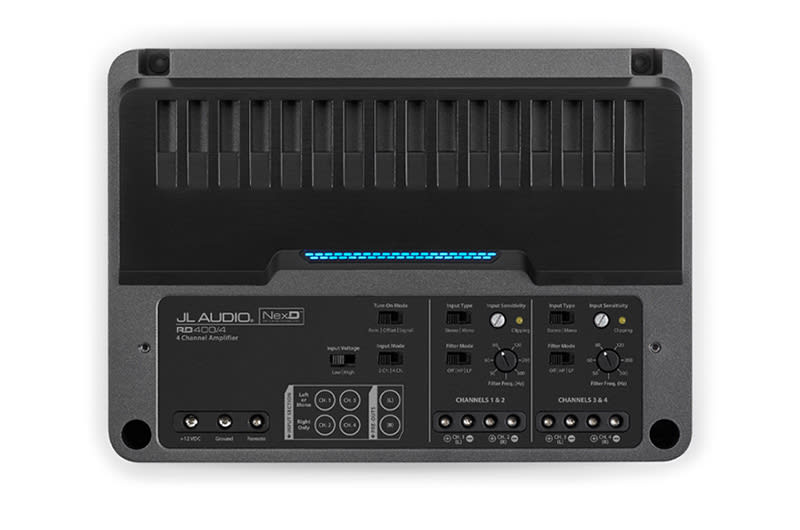

LED clipping indicators on the control panel let you quickly set each channel pair’s input sensitivity, without the need for additional test equipment.
EASY CONNECTIVITY

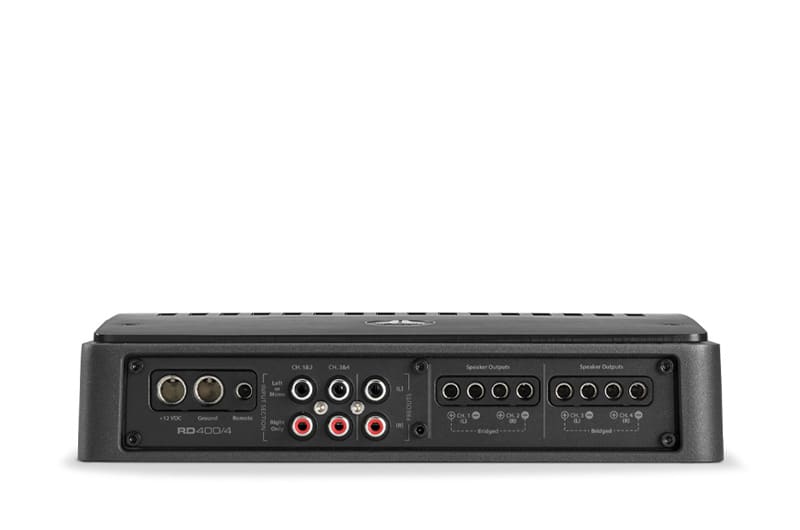

With “input type†switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.
AUDIO TECHNOLOGIES
DIFFERENTIAL-BALANCED INPUTS
Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
NEXD SWITCHING TECHNOLOGY
Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.
| GENERAL | |
|---|---|
| Warranty | 2 years |
| Channels | 4/6 |
| Physical dimensions (Height) | 2.13" (54 mm) |
| Physical dimensions (Width) | 4-Channel: 9.78" (248 mm) 6-Channel: 14.66" (372 mm) |
| Physical dimensions (Depth) | 6.96" (177 mm) |
| Weight | 4-channel: 6.35 lbs (2.88 kg) 6-channel: 7.15 lbs (3.6 kg) |
| Operating voltage | 10-15 VDC |
| Operating temperature range | –4º to 149º F (–20º to 65º C) |
| Audio | |
| Amplifier class | Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 4-Channel: 75 W x 4/200 x 2 (Bridged) 6-Channel: 75 W x 4/150 x 2 200 W x 2/400 W x 1 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | 4-Channel: 100 W x 4 6-Channel: 100 W x 4/200 x 2 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) | 4-Channel: 60 W x 4/180 x 2 (Bridged) |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | 4-Channel: 90 W x 4 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | >104 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | >84 dB |
| Damping factor @ 4 Ω | >150/50 Hz |
| Damping factor @ 2 Ω | >75/50 Hz |
| THD+N @ Rated Power | <1% @ 4 Ω |
| Frequency response (+0, -1dB) | 12 Hz-22 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Input impedance | 10 kΩ (Low) 2.7 kΩ (High) |
| Current consumption (Idle) | 1,900 mA-2,000 mA |
| Fuse rating | 4-Channel: 40 A 6-Channel: 80 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuseâ„¢ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Over temperature, Ground short, Speaker overcurrent |
| Signal Processing | |
| Filter mode(s): Channels 1 & 2 | 4-Channel: Off, Low-pass or High-pass 6-Channel: High-pass only (Off, x1, x10) |
| Filter Slope(s): Channels 1 & 2 | 12 dB/octave |
| Filter frequency range: Channels 1 & 2 | 4-Channel: 50 Hz-500 Hz 6-Channel: 50 Hz-500 Hz (x10: 500 Hz-5 kHz) |
| Filter mode(s): Channels 3 & 4 | 4-Channel: Off, Low-pass or High-pass 6-Channel: Off, High-pass or Bandpass |
| Filter Slope(s): Channels 3 & 4 | 12 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Filter mode(s): Channels 5 & 6 | 6-Channel: Off, High-pass or Bandpass |
| Filter Slope(s): Channels 5 & 6 | 6-Channel: 12 dB/octave |
| Filter frequency range: Channels 5 & 6 | 6-Channel: 50 Hz-500 Hz |
| Detented, calibrated filter frequent potentiometers | Yes |
| Channel input mode switch | 4-Channel: yes (2/4 Channels) 6-Channel: yes (2/4/6 Channels) |
| Pass-through preamp output | Buffered |
| In the box | |
| In the Box | RD amplifier 2.5 mm Allen-wrench JL Audio badge |
