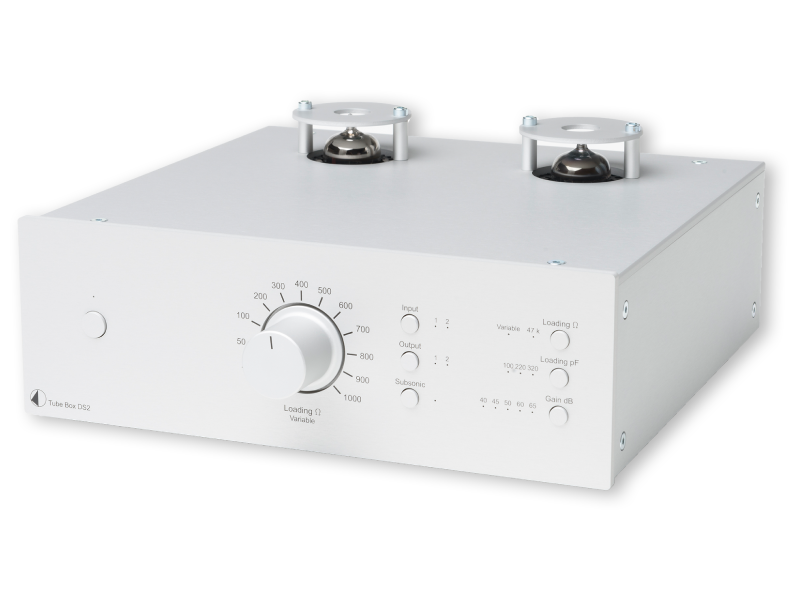

Project Audio Tube Box DS2 Premium Phono Pre- Amplifier - PJ71651732

PJ71651732

$1199.99

Scheduled Delivery

Project Audio Tube Box DS2 Premium Phono Pre- Amplifier - PJ71651718

PJ71651718

$1199.99

Project Audio Tube Box DS2 Premium Phono Pre- Amplifier - PJ71651732

PJ71651732

$1199.99

CALL FOR FREE CONTACTLESS DELIVERY/PICKUP*


Premium phono preamplifier with tube output and highend sound!

This precision tube phono pre-amplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. Compatible with both MM and MC cartridges. It offers connection for two turntables plus two selectable line outputs and a continuously variable selection of input impedance for low output MC cartridges while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile-grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers!

Magnetic real wood side panels in walnut, rosenut & eucalyptus are available separately & not included in the scope of delivery.

Features

  • Suitable for MM and MC cartridges
  • Precise RIAA equalisation
  • Ultra low noise circuitry
  • Selection between 2 phono inputs & 2 line outputs
  • Dual mono circuitry for optimized channel separation
  • Selectable input impedance (for MC: fix or variable)
  • Selectable input capacitance (for MM)
  • Selectable subsonic filter
  • Gold-plated RCA in & outputs
  • Sandwich alu/metal casing protects from vibrations and electromagnetic interference
  • Magnetic side panels in eucalyptus, rosenut and walnut available separately
Specifications
Power consumption max490mA DC / < 0.5 Watt Standby
Power supply18V/1000mA DC
Outputs2 x Line (RCA)
Inputs2 x Phono (RCA)
Subsonic filter20Hz @ 12dB/octave
RIAA curve accuracy+/- 0.2dB/20Hz - 20kHz
THD< 0.04%
SNR88 dBA
Output voltage typically500 mV/1kHz at 5mV/1kHz (at 40dB)
Gain MM / MC40 / 45 / 50 / 60 / 65 dB
Capacitance100 / 220 / 320 pF
Input impedanceVariable 10-1000 Ohm, fix 47 kOhm
Tubes2 x ECC83 (12AX7)
Dimensions B x H x T206 x 91 x 227 mm (Alu), 240 x 93 x 227 mm (Wood)
Weight (without power supply)1500 g (Alu), 1960 g (Wood)
