Monitor MRW-10
The muscular Monitor MRW-10 powered subwoofer delivers a thunderous bass down to below 30 Hz and offers a totally immersive movie, music, or gaming experience.

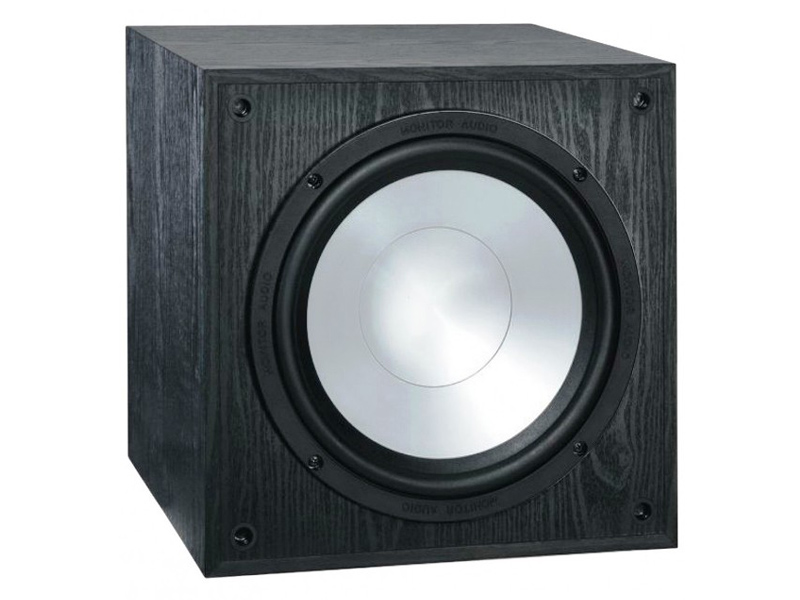

The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10" long-throw MMP II bass driver and a rear port that allows optimal output from the powerful on-board 100 W class D power amplifier.
The Monitor MRW-10 boasts an array of features dedicated to optimising a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility.
Monitor MRW-10 Key Features
- 10" MMP II long throw subwoofer driver
- Rigid MDF cabinet with rear porting
- Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
- Switch mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
- DSP processing with all control features and crossover performed in the digital domain
- Three pre-set EQ mode settings. Music / Movie / Impact
- 12 V trigger – provides switching control from AV amp, processor, or home automation control system
- 18 mm thick MDF construction
| Specifications | |
|---|---|
| System Format | Rear ported bass reflex cabinet |
| Lower Frequency Limit | 30 Hz (-6 dB) |
| Upper Frequency Limit | Variable 50 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 100 W RMS |
| Amplifier Classification | Class D with Switch mode PSU |
| Bass EQ Profiles | Music / Movie / Impact |
| Phase Control | 0 – 180° |
| Auto Sensing | >3.5 mV |
| Input Level Requirements | Standby after approximately 15 minutes if no signal sensed |
| Drive Unit Complement | 1 x 10" MMP II long throw driver |
| Input Impedance | >20 K ohms |
| Mains Input Voltage | 110 – 120 Vac – 50 – 60 Hz 220 – 240 Vac – 50 – 60 Hz. Selectable |
| Fuse Specification | 110 – 120 VAC – T4AL/250VAC 220 – 240 VAC – T4AL/250VAC |
| Connection | 2 x Stereo RCA, 1 x LFE RCA connection 12 V trigger (3.5 mm mono mini-jack) |
| External Dimensions (Including Grille & Feet (H x W x D)) | 336 x 320 x 350.6 mm (13 1/4 x 12 5/8 x 13 13/16") |
| Standby Power Consumption | <0.5 W standby |
| Weight | 10.54 kg (23 lb 4 oz) |
