Rotel Integrated Stereo Amplifier - DX-5
The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
- Certified Roon Tested
- ICESS premium 32-bit Digital to Analog Converter
- BluetoothBluetooth with aptX™HD and AAC
- 2 x 33 Watts of Robust Class AB power, 4 Ohms
- Includes Remote Control
Engineered with care.
Product Description

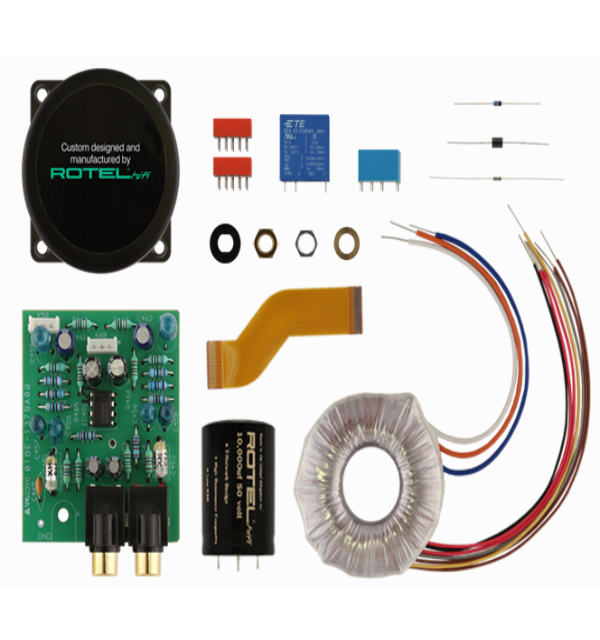

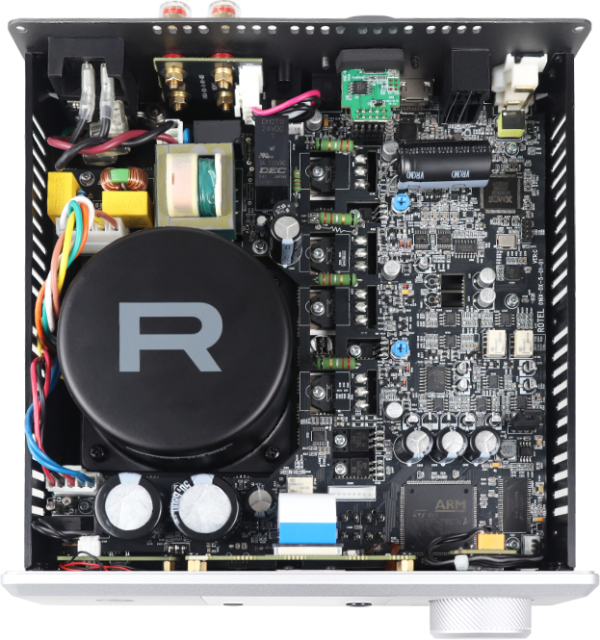

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).
The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.
The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
| Specifications | |
|---|---|
| Dimensions (W × H × D) | 215 x 76 x 251mm 8 1/2 x 3 x 10" |
| Front Panel Height | 70 mm (2 3/4") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 80 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 4.1 kg (9.1 lbs.) |
| BTU | 241 BTU/h |
| Power Output (FTC) | 25 W / ch |
| Maximum Power Output (Non FTC) | 33 W / ch, (1k Hz, 4 Ω) |
| Continuous Power Output (Non FTC) | 25 W / ch, (1k Hz, 8 Ω) |
| Total Harmonic Distortion | < 0.03% |
| Frequency Response | 10 Hz – 100k Hz (0 ± 0.19 dB) |
| Damping Factor (20 Hz – 20k Hz, 8 Ω) | 140 |
| Input Sensitivity / Impedance | 680 mV / 100k Ω |
| Input Overload | 4.2V |
| S/N Ratio (IHF "A" Weighted) | >100 dB |
| Intermodulation Distortion (60 Hz : 7k Hz, 4:1) | < 0.03% |
| Frequency Response (10 Hz – 80k Hz) | 10 Hz – 80k Hz (0 ± 2 dB, Max |
| Input Sensitivity / Impedance | 10.3 dBFS / 75 Ω |
| S/N Ratio (IHF "A" Weighted) | >100 dB |
| HDMI | Support ARC function |
| Digital Inputs | SPDIF LPCM (up to 24-bit / 192k Hz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz) Roon Tested |
