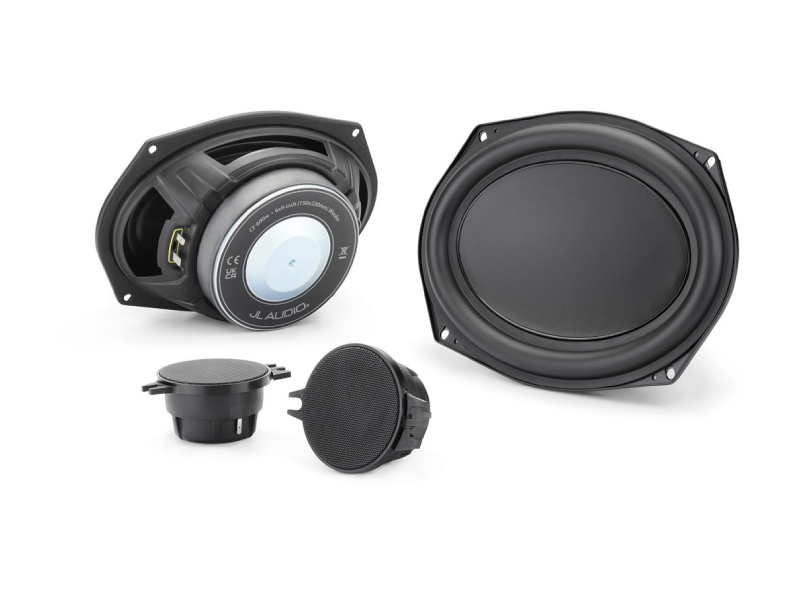

6"x9" JL Audio Custom-Fit 2-way Car Component Speaker System for Ram/Toyota/GM - CF-690-RTG
GREAT SOUND AND A PERFECT FIT
Custom-fit (CF) speaker systems from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including RAM, Toyota, Chevrolet and GMC. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.
WHAT YOU'LL LOVE
ENGINEERED FOR PERFORMANCE
To deliver the best efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination.
DMA-OPTIMIZED SPEAKERS
Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.
ADVANCED FRAME DESIGN

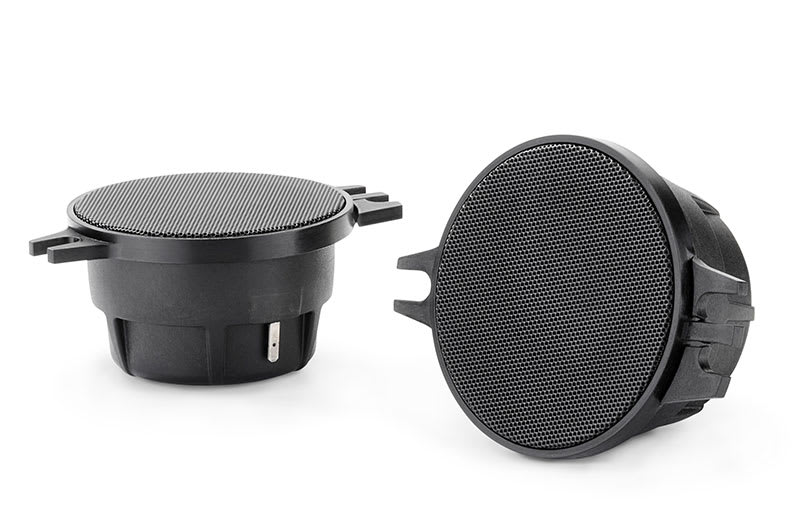

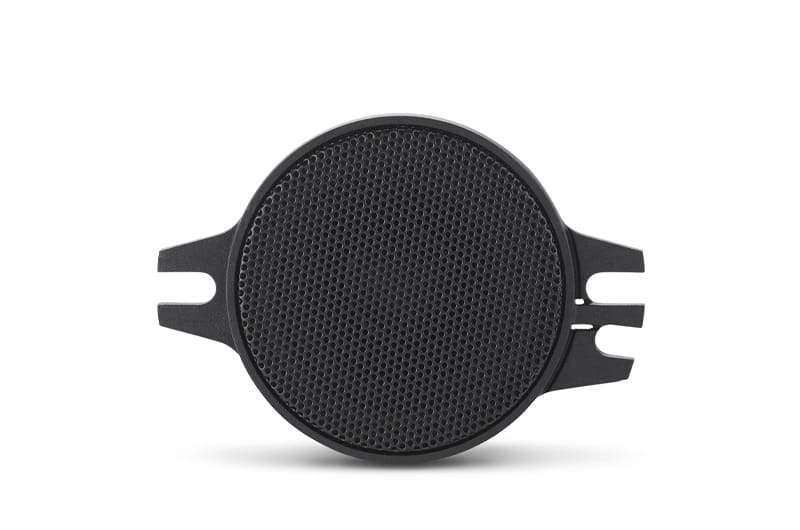

Benefiting from years of design experience, all CF midtweeters feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.

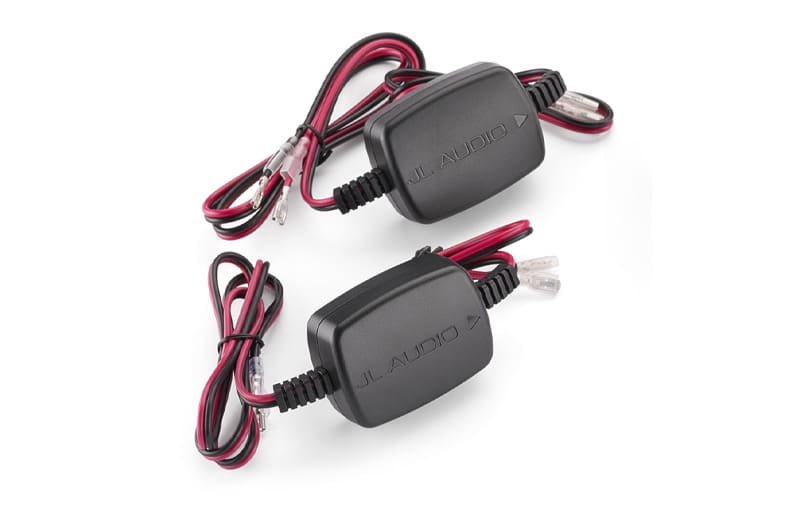

TRUE TWO-WAY CROSSOVER
Get simple integration into factory audio system wiring with onboard woofer low-pass filters and in-line midtweeter high-pass filters. Both can be bypassed for active systems.

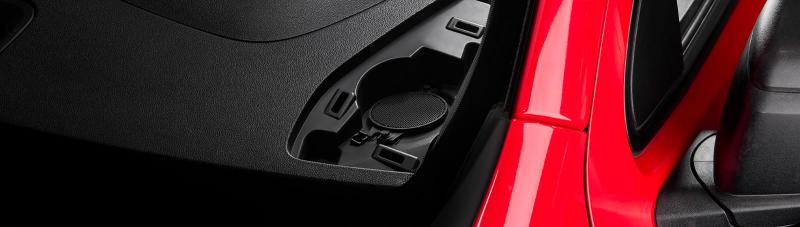

MADE TO FIT

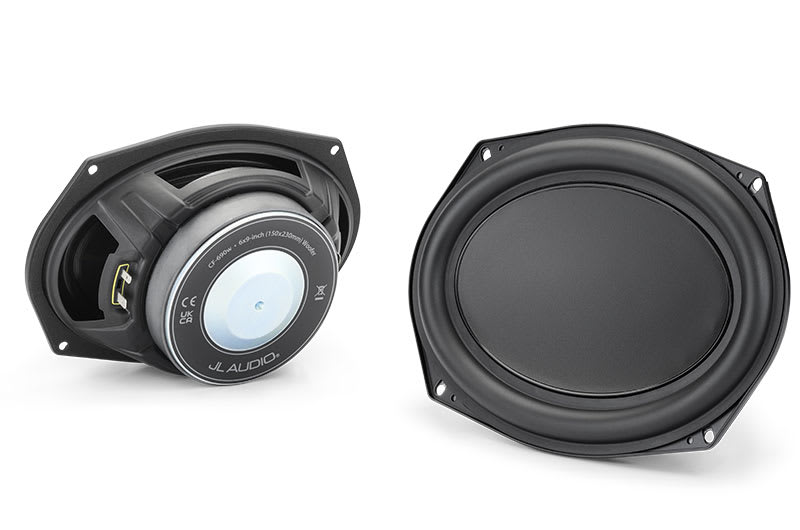

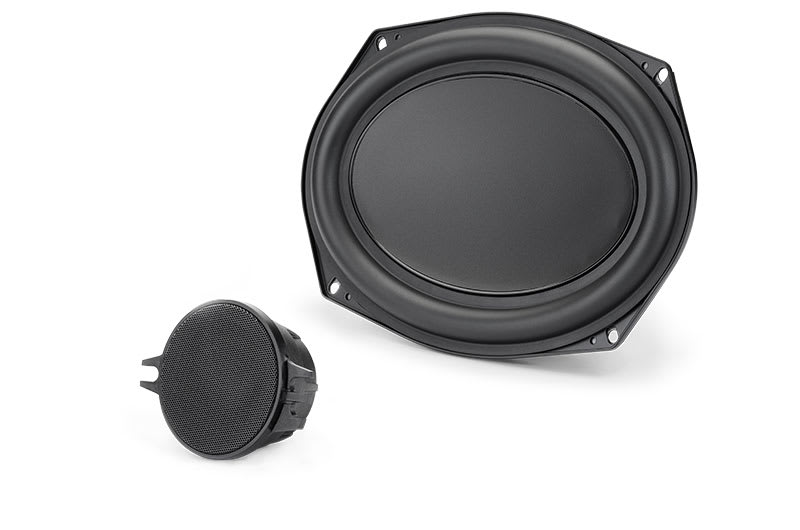

JL Audio CF component systems include a 6-by-9-inch woofer and a 2.75-inch midtweeter to provide easy, direct installation in a variety of Ram, Toyota and GM vehicles.

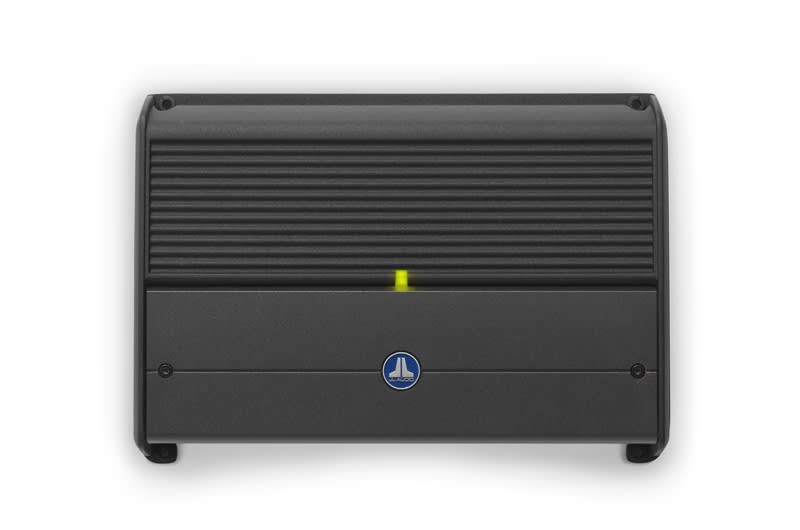

READY FOR REAL POWER
CF speaker systems deliver superb sound when powered by an amplifier in the 50–150 watts-per-channel range.
| GENERAL | |
|---|---|
| Warranty | 1 yea |
| Sizes | 6 x 9" |
| Continuous power handling (RMS) | 150 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Frequency response (+/- 3 dB) | 36 Hz-19 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 50-150 W/Channel |
| Cone material | Mineral-filled polypropylene |
| Grille(s) included | 2.75": yes |
| Networking & Connections | |
| Speaker connections | Spade connectors |
| Mounting Dimensions | |
| Frame outer diameter | 2.75": 2.85" (72 mm) 6 x 9": 6.38 x 9.13" (162 x 232 mm) |
| Mounting depth clearance | 2.75": 1.45" (37 mm) 6 x 9": 2.85" (72 mm) |
| Frontal grille protrusion | 2.75": 0.28" (7 mm) |
| Motor outer diameter | 6 x 9": 4.72" (120 mm) |
| Crossover Specifications | |
| Width | 2.53" (64 mm) |
| Height | 1.93" (49 mm) |
| Depth | 1.09" (28 mm) |
| In the box | |
| In the Box | Two woofers Two mid-tweeters Four OEM woofer adapter rings Two OEM mid-tweeter adapter rings Two crossovers Twenty 1" mounting screws Four 5/8” mounting screws Two 0.250” female crimpable connectors Four 0.187” female crimpable connectors Two 0.110" female crimpable connectors Two woofer foam gaskets Four splice connectors |
