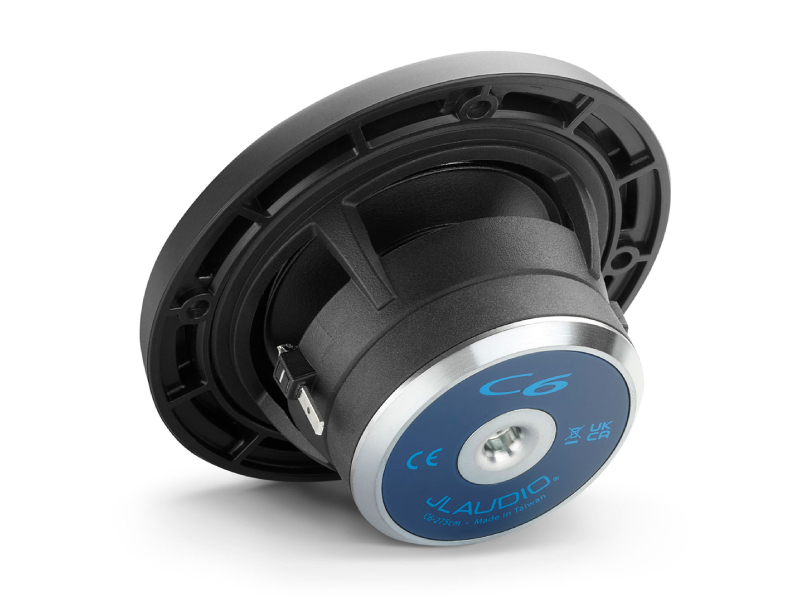

2.75" JL Audio C6 Car Component Midrange Speaker (Single) - C6-275cm

SKU : C6-275cm
Pay on delivery
30 day price guarantee
1yr manufactures warranty ( extra 1yr depending on what Credit Card used)
Better pricing than Big Box or Warehouse pricing
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available



BRING REFINED FIDELITY TO YOUR CAR AUDIO SYSTEM

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability.

C6-275cm_08


WHAT YOU'LL LOVE

PREMIUM AUDIO QUALITY

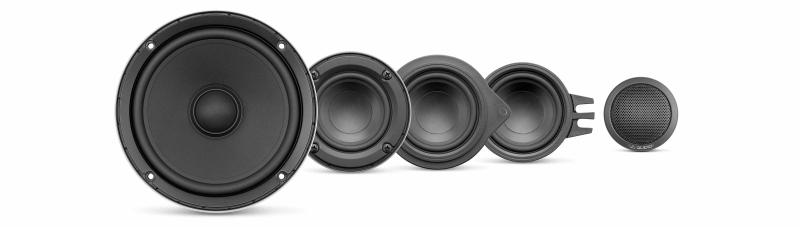

Pairing full-frame 6.5-inch or 2.75-inch woofers with 1-inch silk dome tweeters, the C6 series drivers offer advanced sound technology for an exceptional car audio listening experience. Passive crossover networks are not included with the C6 drivers, as they are designed for active systems.



DMA-OPTIMIZED WOOFERS

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.



SILK DOME TWEETERS

An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.



DESIGNED FOR ACTIVE CROSSOVERS

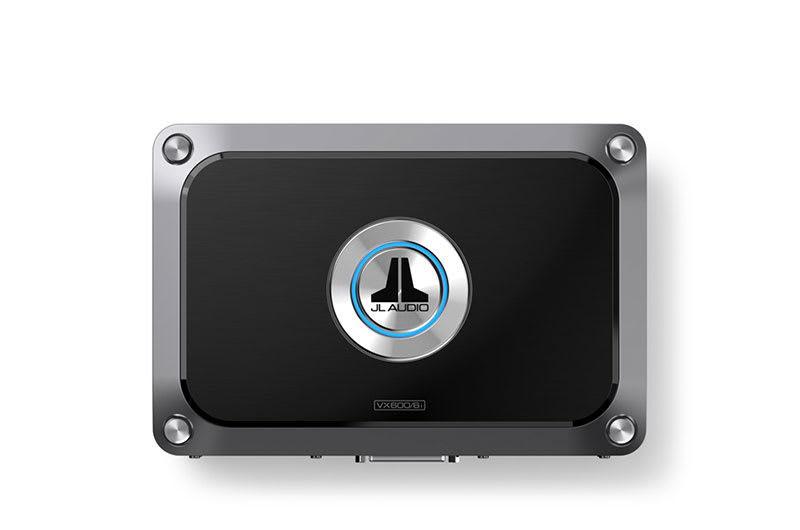

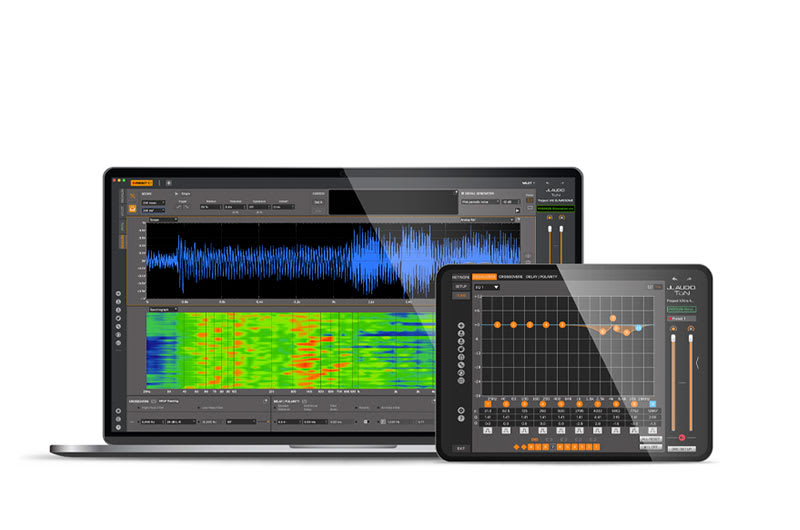

A high-quality tuning Digital Signal Processor (DSP) — such as the TwK® DSP or a VXi amplifier with built-in DSP — is recommended. Using individual amplifier channels for each C6 speaker enables the system designer to achieve precise setup of equalization, delay and crossover filters for optimal in-vehicle performance.

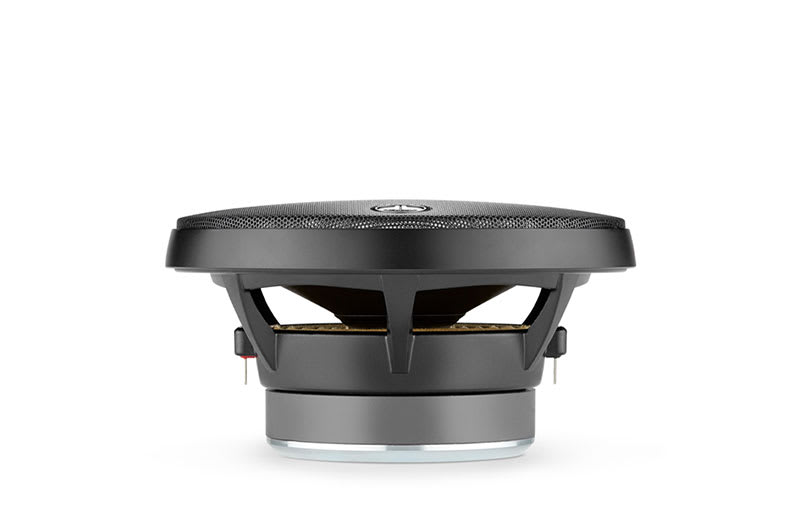

ADVANCED FRAME DESIGN

Benefiting from years of woofer design experience, the robust JL Audio C6 series component speakers feature purpose-engineered cast-alloy frames outfitted with our patented Elevated Frame Cooling technology to enhance airflow, power handling and audio quality.



POWERFULLY ADAPTABLE

On a wide range of car audio applications, the C6 series speakers deliver superb sound when powered by your amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels.



DESIGN AND TECHNOLOGIES

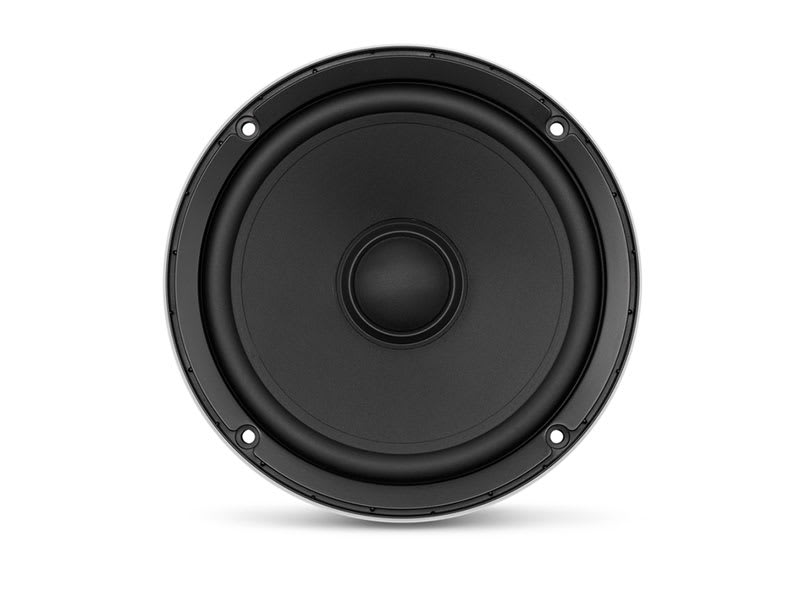

6.5-INCH WOOFER

The 6.5-inch C6 woofer offers exceptional linear excursion capability and outstanding linearity, resulting in solid midbass and pure, precise midrange performance.

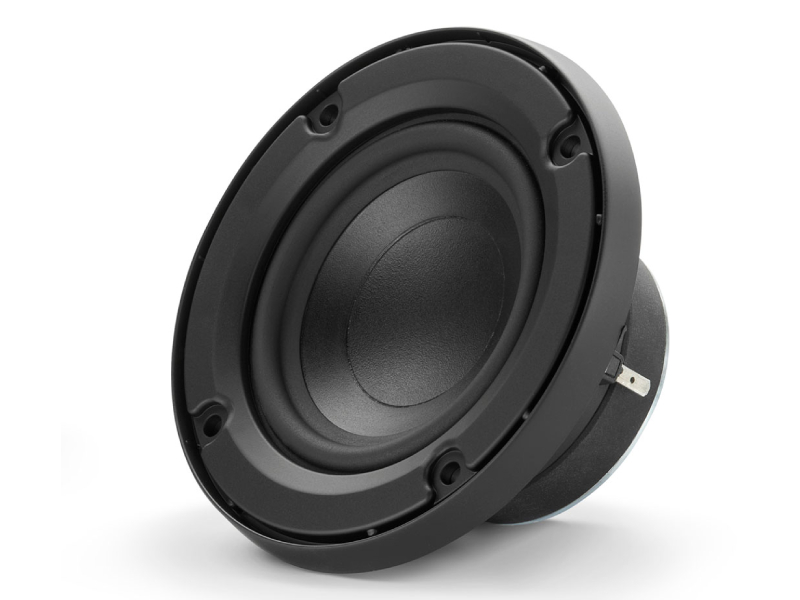

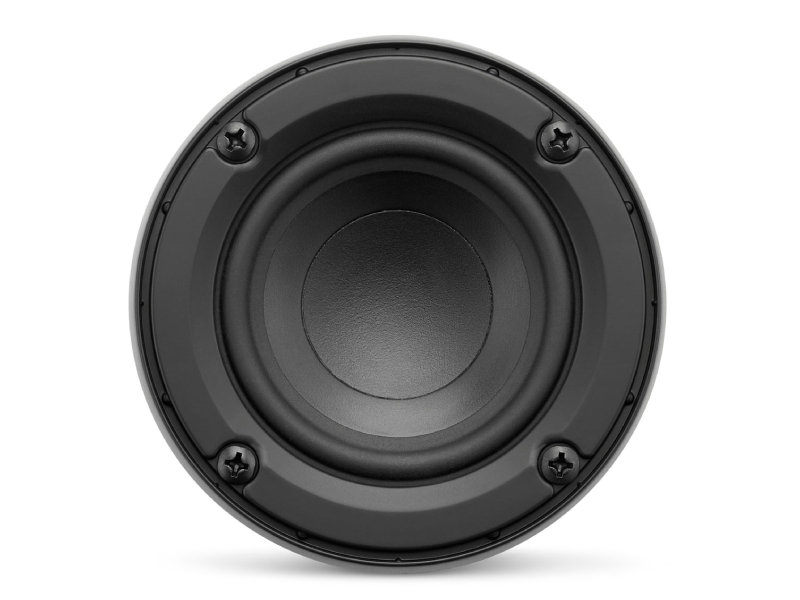

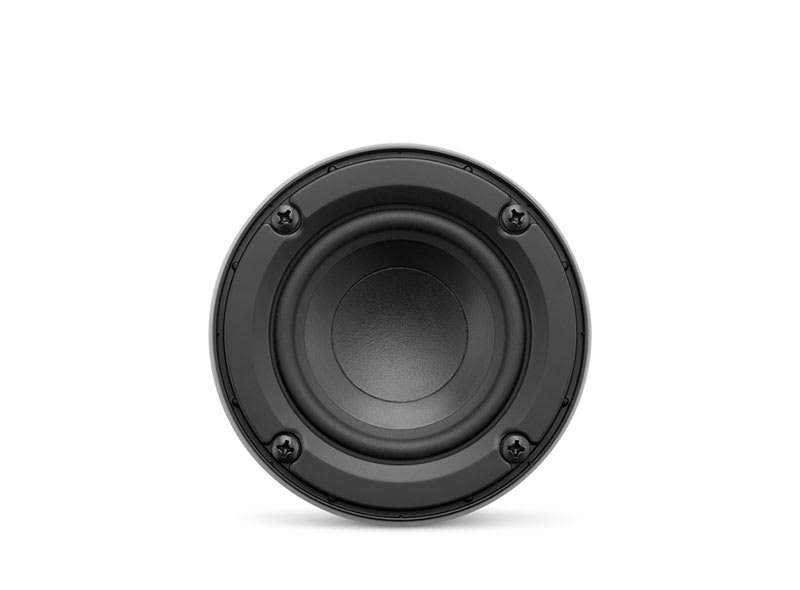

2.75-INCH MIDRANGE

A 2.75-inch midrange C6 speaker offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural midrange reproduction.

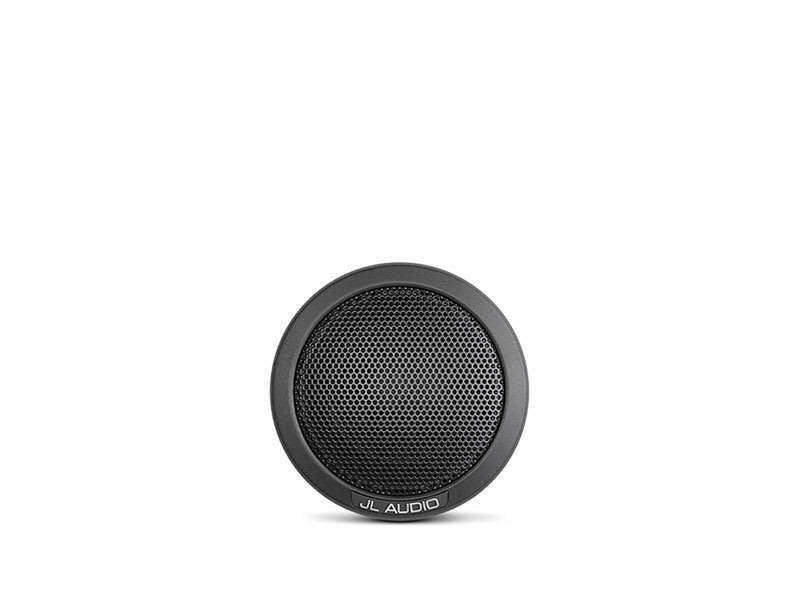

1-INCH TWEETER

Premium C6 tweeters feature an edge-driven pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping.



In the Box

  • Two woofers
  • Two tweeters
  • Two crossovers
  • Eight speed clips
  • Two 0.250" female crimpable connectors
  • Two 0.185" female crimpable connectors
  • Two 0.185" male crimpable connectors
  • Two 0.110" male crimpable connectors
  • Eight 1-1/4" mounting screws
  • Four 1" pan head screws
  • Two 1" flat head screws
  • Two flush mount tweeter housings
  • Two surface mount tweeter housings
  • Two metal spring clips (for flush mounting)
  • Two M4x30 mm machine screws
  • Two grille frames, grilles and JL Audio logo badges

C6-653 also includes:

  • 2 midranges
  • Two 0.185" female crimpable connectors
  • Two 0.110" female crimpable connectors
  • Eight 1-1/4" mounting screws
  • Two grille frames, grilles and JL Audio logo badges
  • Four OEM adapter rings

Component Tweeters (C6-100ct) include:

  • One tweeter
  • One 15 microfarad capacitor
  • One 0.185" male crimpable connectors
  • One 0.110" male crimpable connectors
  • One 1" flat head screw
  • One flush mount tweeter housing
  • One surface mount tweeter housing
  • One metal spring clip (for flush mounting)
  • One M4x30 mm machine screw

Component Drivers (C6-275cm and C6-650cw) include:

  • One midrange or woofer
  • One 0.185" female crimpable connector
  • One 0.110" female crimpable connector
  • Four 1-1/4" mounting screws

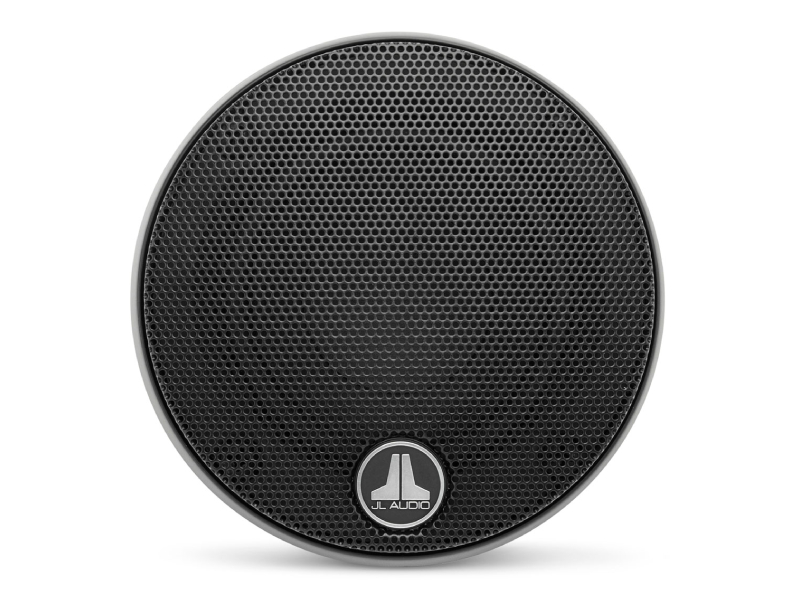

  • One grille frame, grille and JL Audio logo badge

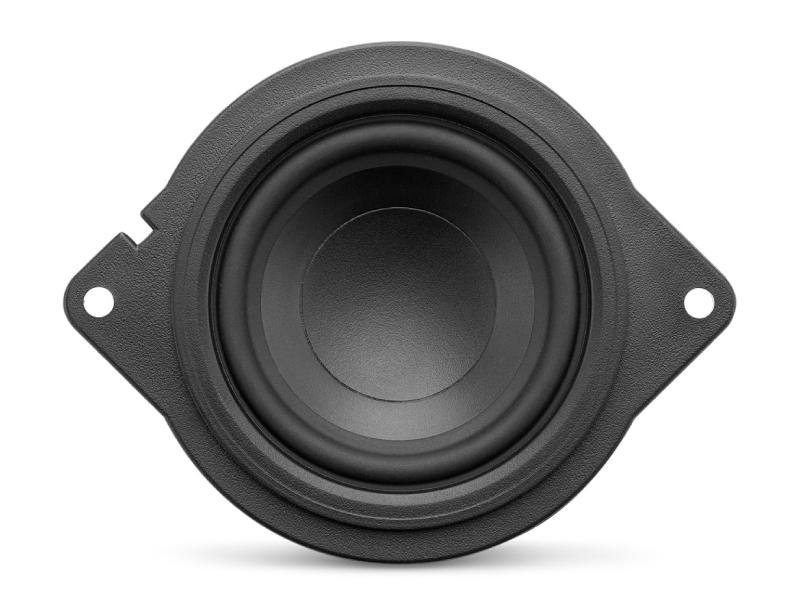

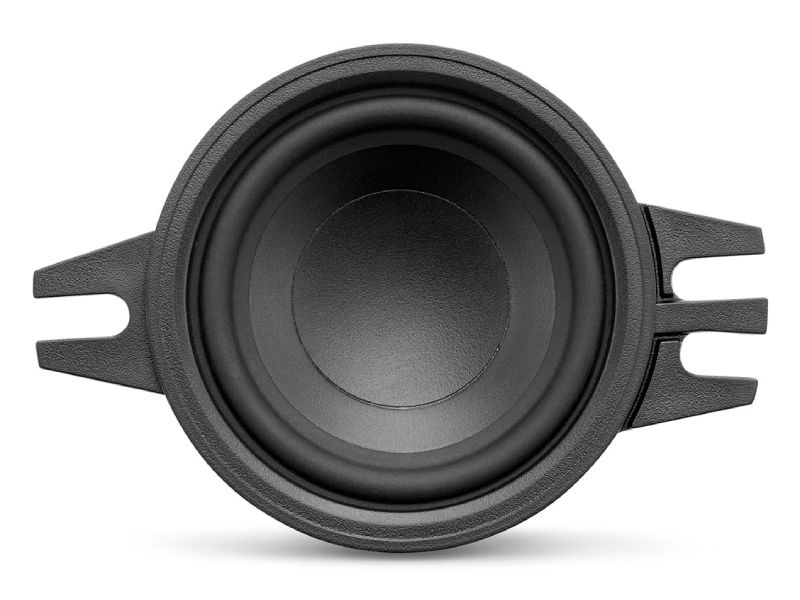

C6-275cm also includes:

  • Two OEM adapter rings

GENERAL
Warranty1 yea
Sizes1"/2.75"/6.5"
Continuous power handling (RMS)1": 75 W
2.75": 50 W
6.5": 100 W
Sensitivity (SPL @ 1 W/1 m)1": 90 dB
2.75": 83.50 dB
6.5": 87.37 dB
Sensitivity (SPL @ 1 W/0.5 m)1": 96 dB
Sensitivity (SPL @ 2.83 V/1 m)1": 93 dB
2.75": 86.50 dB
6.5": 90.33 dB
Frequency response (+/- 3 dB)1": 3 kHz-21 KHz
2.75": 350 Hz-4.8 KHz
6.5": 55 Hz-6 KHz
Nominal impedance4 Ω
Recommended amplifier power (RMS)1": 25-100 W/Channel
2.75": 25-80 W/Channel
6.5": 25-150 W/Channel
Voice coil diameter2.75": 0.8" (20.5 mm)
6.5": 1.27" (32 mm)
Cone materialVacuum-formed, mineral-filled polypropylene
Tweeter typeSilk Dome
Tweeter size1" (25 mm)
Grille(s) includedYes
Networking & Connections
Speaker connectionsSpade connectors
Mounting Dimensions
Frame outer diameter2.75": 2.52" (77 mm)
6.5": 6.5" (165 mm)
Mounting depth clearance2.75": 1.42" (36 mm)
6.5": 2.60" (66 mm)
Frontal grille protrusion2.75": 0.47" (12 mm)
6.5": 1" (25 mm)
Mounting hole2.75": 2.52" (64 mm)
6.5": 5.46" (139 mm)
Grille tray outer diameter2.75": 3.58" (91 mm)
6.5": 6.76" (172 mm)
Bolt hole circle2.75": 3.03" (77 mm)
6.5": 6.12" (156 mm)
Motor outer diameter2.75": 2.75" (69 mm)
6.5": 3.54" (90 mm)
Parameters
Free Air Resonance (FS)1": 1500 Hz
2.75": 185 Hz
6.5": 52.8 Hz
Electrical “Q” (Qes)2.75": 0.769
6.5": 0.647
Mechanical “Q” (Qms)2.75": 7.848
6.5": 5.076
Total “Q” (Qts)2.75": 0.700
6.5": 0.574
Equivalent Compliance (Vas)2.75": 0.0353 cu ft (0.125 L)
6.5": 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)2.75": 0.059" (1.50 mm)
6.5": 0.148" (3.75 mm)
Reference Efficiency (NO)1": 0.602%
2.75": 0.1414%
6.5": 0.344%
Moving mass (Mms)2.75": 4.65 g
6.5": 16.42 g
Mechanical compliance (Cms)2.75": 0.00031 m/N
6.5": 0.000581 m/N
Magnetic strength (BL)2.75": 5.03
6.5": 5.186
Effective piston area (SD)2.75": 3.66 in² (0.00236 m²)
6.5": 21.4 in² (0.013807 m²)
DC resistance (RE)1"/6.5": 3.20 Ω
2.75": 3.58 Ω
Tweeter Specifications
Flush mount fixture diameter1": 2.13" (54 mm)
Surface mount fixture diameter1": 2.11" (54 mm)
Flush mount mounting hole diameter1": 1.85" (47 mm)
Flush mount mounting depth1": 1.85" (47 mm)
Flush mount tweeter frontal protrusion1": 0.30" (8 mm)
Surface mount tweeter frontal protrusion1": 1.04" (26 mm)
