Monitor Audio - CSS230 (Each)
$549.00
Scheduled Delivery
Literature
You may also like
The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.
Technology
- Super-slim mounting depth 50mm (2") designed to fit within 2" stud walls or where space is restricted

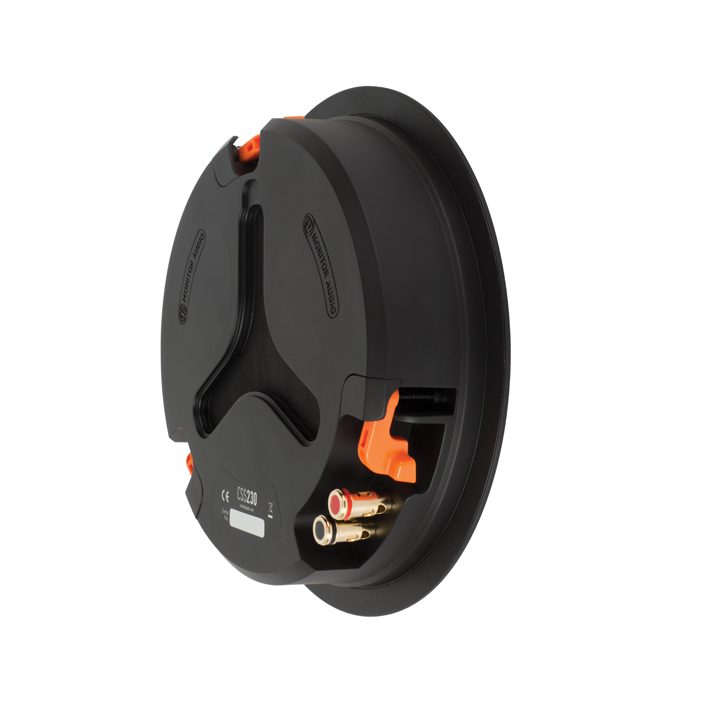

- Hybrid CP 'Controlled Performance' style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)
- Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19mm C-CAM gold dome tweeter (fixed position) and high quality crossover design offers Monitor Audio's award-winning signature sound quality
- Gold plated sprung push terminals are reliable and easy to connect
- Magnetically attached 'Trim-less' round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
- Patented Tri-Grip dog leg fixings Reliable, robust and quick to install
- Existing pre-construction bracket for easier system design and planning
Rated Continuous Power @14.4V | |
---|---|
Frequency Response (-6dB) | 100Hz – 30KHz sealed ‘CP’ (85Hz – 30KHz –open back) |
Impedance (nominal) | 8Ω |
Sensitivity (1W @ 1M) | 86dB |
Maximum SPL | 103.8dBA |
Power Handling (RMS) | 40 Watts – Full range (60 watts with crossover set to 100Hz @ 12dB/Octave) |
Recommended Amp Requirements | 10 - 60w |
Drive Unit Complement | 3 x 3" C-CAM cone bass-mid drivers 1 x 19mm (3/4") C-CAM Gold Dome tweeter |
Crossover Recommendation - using an AVR | 100Hz at a minimum of 12dB/Octave (24dB/Octave optimum) |
Connection | Gold Plated Sprung push terminals – for bare wire connection up to 4mm(2) |
Overall Diameter (including grille) | 250mm (9 13/16") |
Overall Depth (including grille) | 54 mm (2 1/8") |
Cut Out Diameter | 211mm (8 1/4") |
Mounting Depth | 50mm (2") |
Fixing Type | 3 position Tri-Grip dog leg fixings |
Construction Materials | ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille |
Pre-Construction Bracket | CB6 (Purple) |
