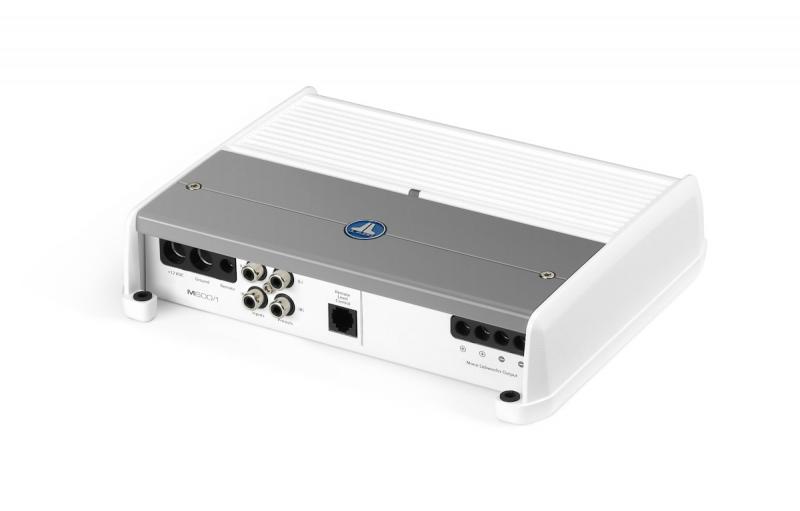

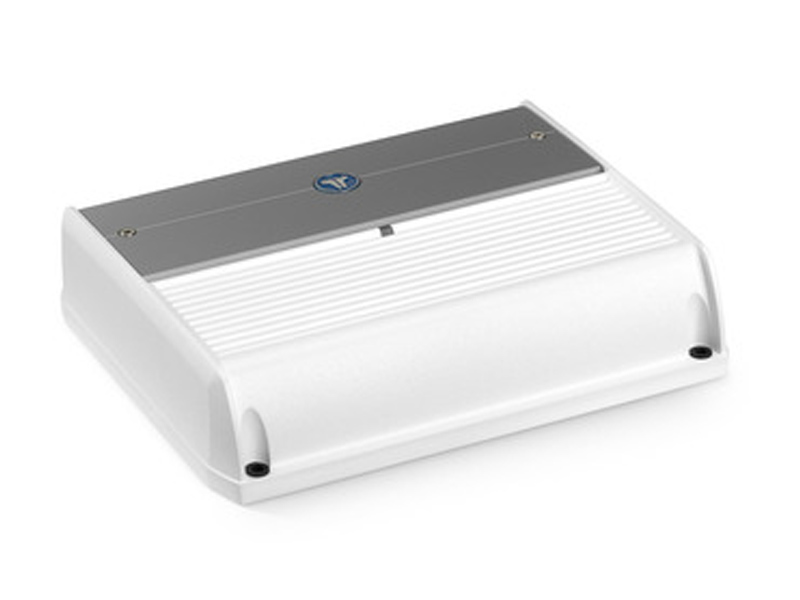

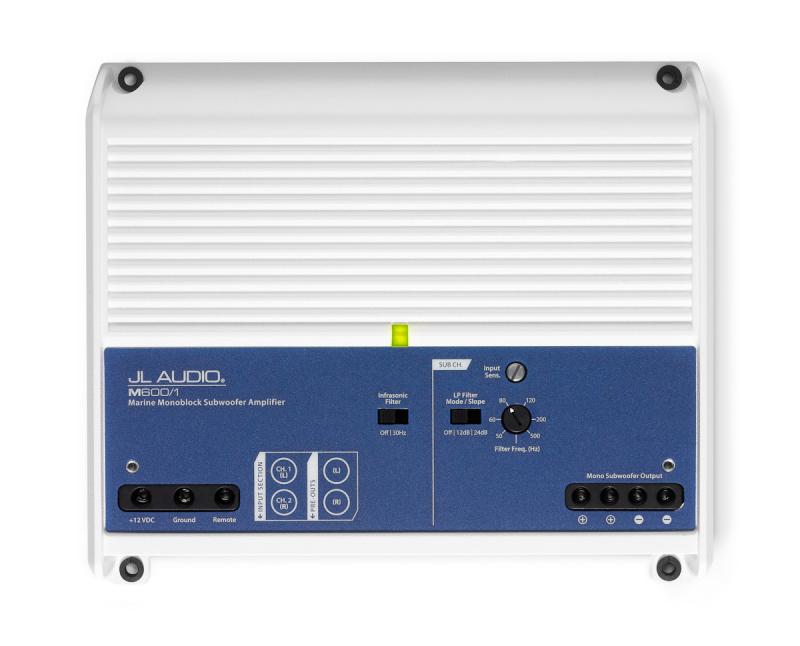

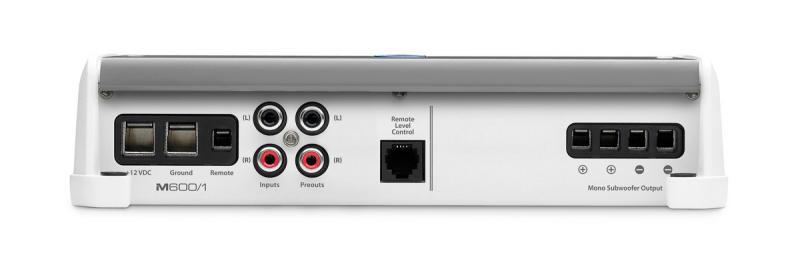

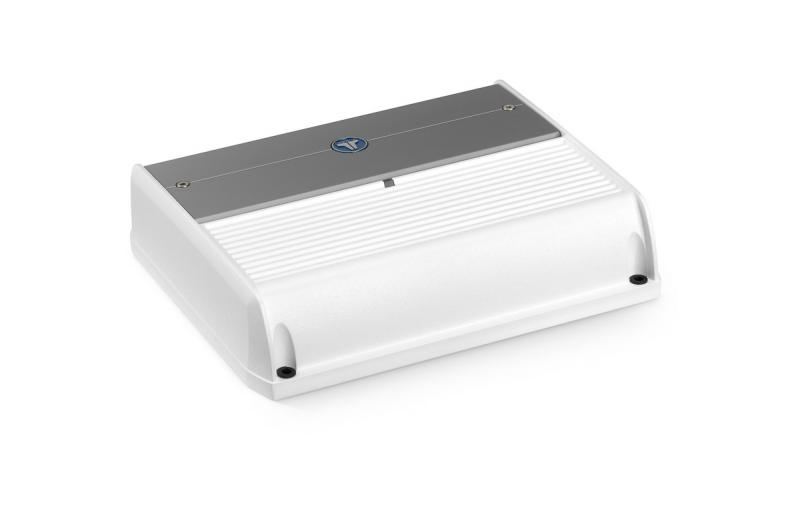

JL Audio Monoblock Class D Marine Subwoofer Amplifier, 600 W - M600/1
M600/1
$789.95
Scheduled Delivery
- CATEGORY: Marine Amplifiers
Monoblock Class D Marine Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V

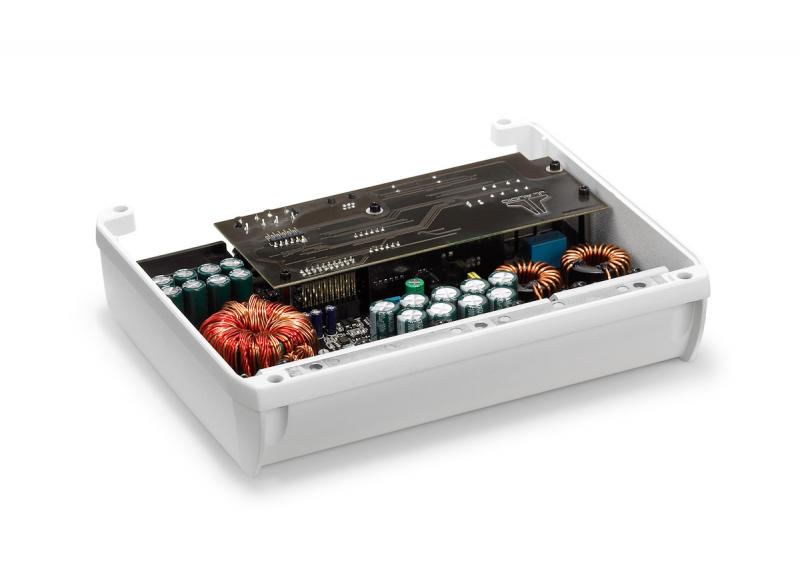

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 Ω load (14.4V, 1% THD).
Specification
Rated Continuous (RMS) Power @ 14.4 V
- @ 4 Ω : 400 W RMS x 1
- @ 3 Ω : 500 W RMS x 1
- @ 2 Ω : 600 W RMS x 1
- @ 1.5 Ω : N/A
Rated Continuous (RMS) Power @ 12.5 V
- @ 4 Ω : 300 W RMS x 1
- @ 3 Ω : 400 W RMS x 1
- @ 2 Ω : 500 W RMS x 1
- @ 1.5 Ω : N/A
General Specifications
- Frequency Response : 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power : >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W : >59 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω : >1000 / 50 Hz
- Damping Factor @ 2 Ω : >500 / 50 Hz
- THD+N @ Rated Power : <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs : 100 mV - 4 V RMS
- Min.Copper Power / Ground Wire Gauge : 4 AWG wire
- Fuse Rating : 50 A (AFS, AGU or MaxiFuse™)
Signal Processing
- Filter Mode(s) : Low-Pass only
- Filter Slope(s) : 12/24 dB/octave
- Filter Frequency Range : 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer : Yes
- Filter Defeat Function : Yes
- Infrasonic Filter : 30 Hz, defeatable
- Bass Boost EQ (0 to +12 dB @ 45 Hz) : No
- Output Polarity Switch : No
- Remote Subwoofer Level Control : Optional (HD-RLC)
- Pass-Through Preamp Output : Buffered
Physical Specifications
- Height (H) : 2.05 in / 52 mm
- Width (W) : 8.52 in / 216 mm
- Depth (D) : 7.09 in / 180 mm
- Net Weight : 4.6 lb / 2.06 kg
