4-Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 Ω / 50 W x 4 @ 4 Ω - 14.4V
Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

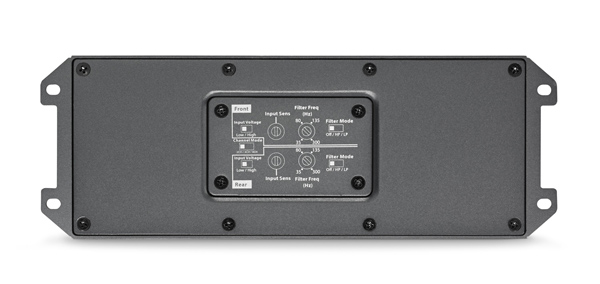

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
|Rated Continuous (RMS) Power @ 14.4 V|
|@ 4 Ω||50 W RMS x 4|
|@ 2 Ω||70 W RMS x 4|
|Bridged @ 4Ω||140 W RMS x 2|
|Rated Continuous (RMS) Power @ 12.5 V|
|@ 4 Ω||36 W RMS x 4|
|@ 2 Ω||52 W RMS x 4|
|Bridged @ 4Ω||100 W RMS x 2|
|Frequency Response||20 Hz - 20 kHz (+0, -1dB)|
|S/N Ratio, referred to highest rated power||>89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W||>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>60 / 50 Hz|
|Damping Factor @ 2 Ω||>30 / 50 Hz|
|THD+N @ Rated Power||<1% @ 2 Ω per Ch.|
|Input Voltage Range @ RCA Inputs||Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)|
|Min.Copper Power / Ground Wire Gauge||8 AWG wire|
|Fuse Rating||35 A (AFS, AGU or MaxiFuse™)|
|Filter Mode(s)||Low-Pass or High-Pass|
|Filter Slope(s)||12 dB/octave|
|Filter Frequency Range||35 Hz - 300 Hz|
|Detented, Calibrated Filter Freq. Potentiometers||Yes|
|Filter Defeat Function||Yes|
|Remote Level Control||No|
|Remote Level Modes||N/A|
|Channel Input Mode Switch||Yes (2/3/4 ch.)|
|Pass-Through Preamp Output||None|
|Source Channel Selection for PreOuts||N/A|
