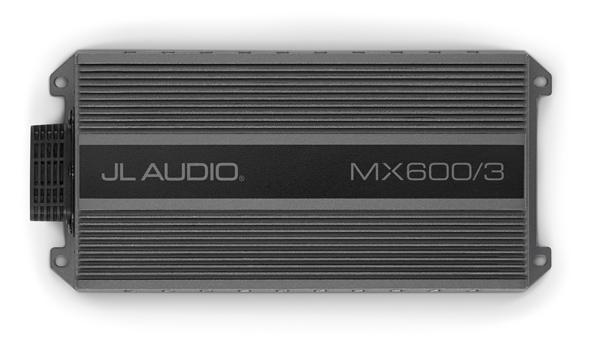

JL Audio 3-Channel Class D System Amplifier MX600/3

MX600/3

$599.95



NEED HELP? GET EXPERT ADVICE
(416) 282-8111




MX600/3
3-Channel Class D System Amplifier
, 100 W x 2 + 400 W x 1 @ 2 Ω / 75 W x 2 + 250 W x 1 @ 4 Ω - 14.4V

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 75W x 2 into 4 ohms (14.4V, 1% THD), the MX600/3 is the perfect solution for driving a pair of speakers and a subwoofer.

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

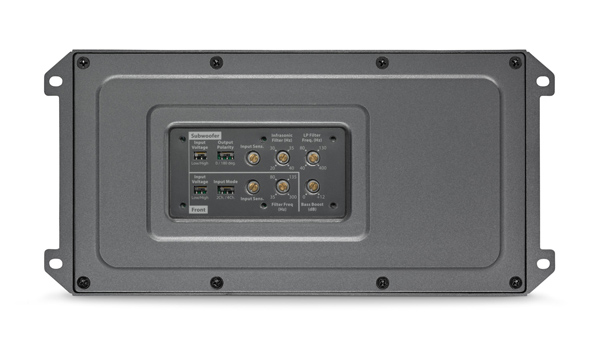

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 2
Main Channels @ 2 Ω 100 W RMS x 2
Main Channels - Bridged @ 4Ω 200 W RMS x 1
Subwoofer Channel @ 4 Ω 250 W RMS x 1
Subwoofer Channel @ 3 Ω 300 W RMS x 1
Subwoofer Channel @ 2 Ω 400 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω 50 W RMS x 2
Main Channels @ 2 Ω 80 W RMS x 2
Main Channels - Bridged @ 4Ω 100 W RMS x 1
Subwoofer Channel @ 4 Ω 200 W RMS x 1
Subwoofer Channel @ 3 Ω 250 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A
General Specifications
Frequency Response 20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >92 / 50 Hz
Damping Factor @ 2 Ω >43 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Slope(s) 12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front) 35 Hz - 300 Hz
Filter Frequency Range: Subwoofer Channel 40 Hz - 400 Hz
Filter Mode(s): Channels 1 & 2 (front) High-Pass only
Filter Mode(s): Subwoofer Channel Low-Pass only
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Remote Subwoofer Level Control Optional (RBC-1)
Remote Level Modes N/A
Channel Input Mode Switch Yes (2/4 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A
Physical Specifications
Height (H) 1.77 in / 45 mm
Width (W) 9.33 in / 237 mm
Depth (D) 4.50 in / 115 mm
